When a fault code appears on your diesel truck, the FMI (Failure Mode Identifier) reveals how a component is failing. Combined with the SPN (Suspect Parameter Number), it gives you actionable insights into the exact problem—something your diesel laptop can quickly decode.

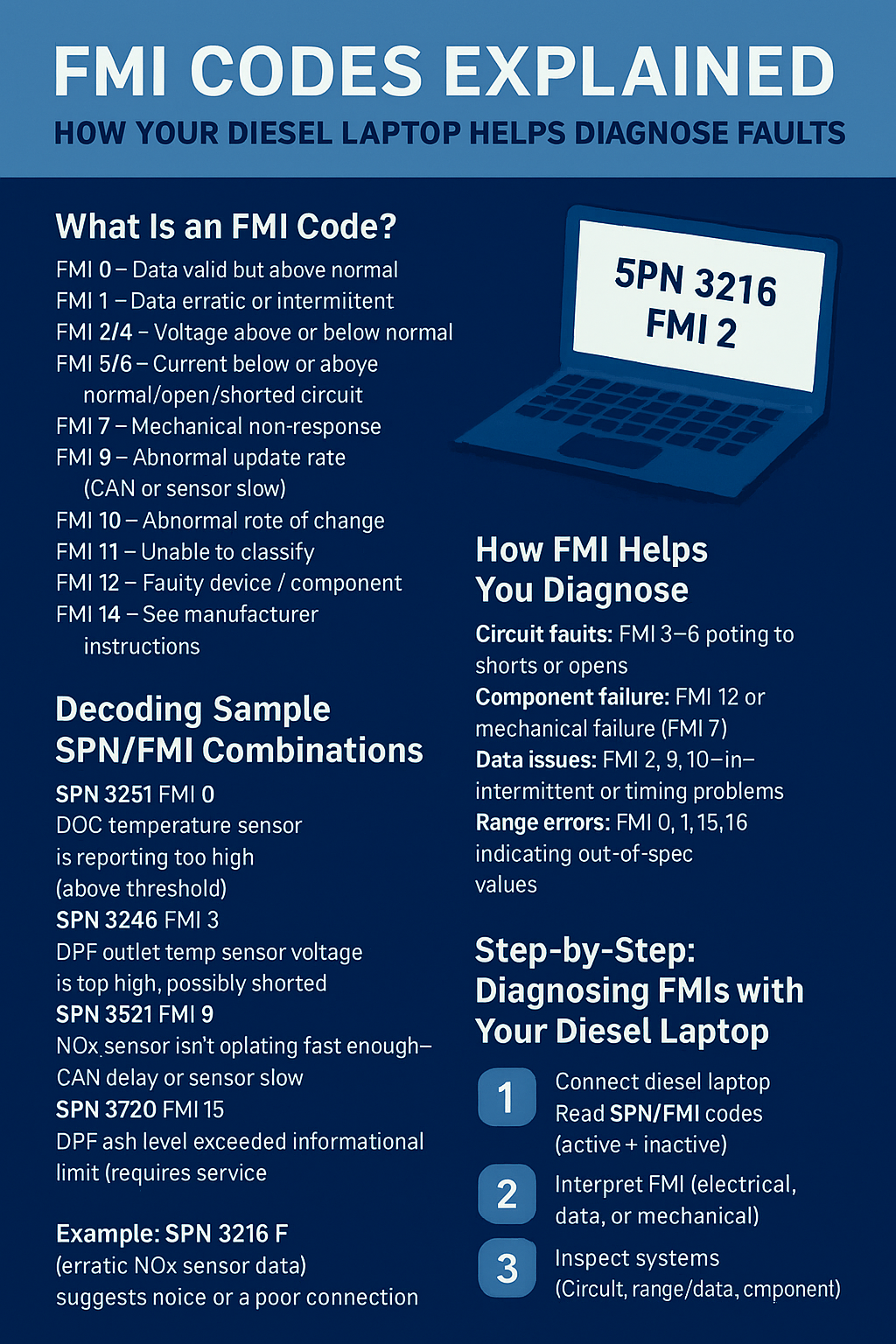

What Is an FMI Code?

FMI defines how a failure is occurring:

• FMI 0 – Data valid but above normal range (most severe)

• FMI 1 – Data valid but below normal

• FMI 2 – Data erratic or intermittent

• FMI 3/4 – Voltage above or below normal (short/high/low)

• FMI 5/6 – Current below or above normal/open/shorted circuit

• FMI 7 – Mechanical non-response

• FMI 9 – Abnormal update rate (CAN or sensor slow)

• FMI 10 – Abnormal rate of change

• FMI 11 – Unable to classify

• FMI 12 – Faulty device or component

• FMI 13 – Out of calibration

• FMI 14 – See manufacturer instructions

• FMI 15–16 – Data above normal (varying severity)

• FMI 31 – Condition exists (not circuit-related)

How FMI Helps You Diagnose with a Diesel Laptop

FMI codes explain why an SPN fault occurred:

• Circuit faults – FMI 3–6 → shorts or opens

• Component failure – FMI 7 (mechanical), FMI 12 (device failure)

• Data issues – FMI 2, 9, 10 → erratic data or slow updates

• Range errors – FMI 0, 1, 15, 16 → values outside normal specs

🔧 Example: SPN 3216 FMI 2 = Erratic NOx sensor data → likely poor connection or electrical noise.

Sample SPN/FMI Code Combinations

• SPN 3251 FMI 0 – DOC temperature sensor too high

• SPN 3246 FMI 3 – DPF outlet temp sensor voltage too high → shorted

• SPN 3321 FMI 9 – NOx sensor not updating fast enough (CAN delay)

• SPN 3720 FMI 15 – DPF ash level exceeded informational limit

Step-by-Step: Diagnosing FMIs with Your Diesel Laptop

1. Connect diesel laptop → read SPN/FMI codes (active + inactive).

2. Interpret FMI → identify if it’s electrical, data, or mechanical.

3. Inspect systems:

   • Circuit faults → wiring/connectors

   • Range/data faults → live data monitoring

   • Component faults → test or replace part

4. Repair & clear codes, confirm resolution.

Tools Required

• Diesel laptop

Final Takeaway

Understanding FMI codes is key to accurate diesel diagnostics. When paired with SPN data and live data monitoring on your diesel laptop, FMI tells you whether a sensor is broken, wiring is faulty, or data is unreliable. The result: faster, precise repairs that prevent downtime and keep your truck on the road.
