When a fault code shows up on your diesel truck, it can feel overwhelming. Whether it’s a check engine light, MIL alert, or a full-blown derate, knowing how to quickly and correctly diagnose the code saves time, money, and frustration.

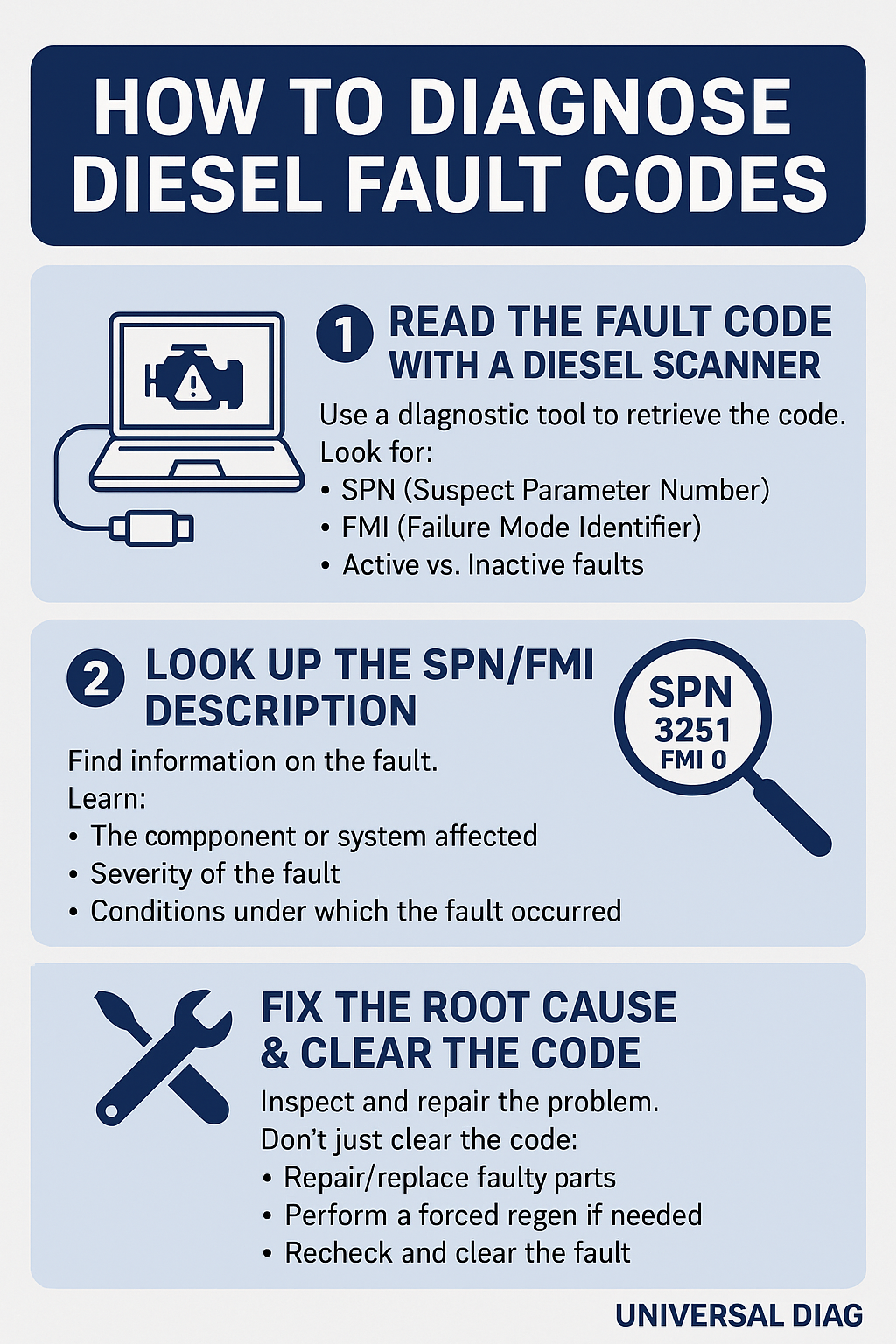

Here are 3 recommended steps to diagnosing diesel fault codes effectively—whether you're using a professional diesel scanner or just starting out.

---

Step 1: Read the Fault Code with a Diesel Scanner

Use a diagnostic tool that supports your engine (e.g., Cummins, Detroit Diesel, Paccar, Volvo, Mack). Connect your diesel laptop or scanner to the vehicle’s diagnostic port using an RP1210 adapter like the Nexiq USB-Link 2.

Look for:

• SPN (Suspect Parameter Number)

• FMI (Failure Mode Identifier)

• Active vs. Inactive faults

Example: SPN 3251 FMI 0 = Aftertreatment fault, DOC efficiency below threshold.

Pro Tip: If the code is inactive, it may not be your root issue—but still log it for reference.

---

Step 2: Look Up the SPN/FMI Description

Each SPN/FMI combo gives you insight into what system or sensor is reporting trouble. Use a fault code lookup tool or the OEM software description (Insite, Tech Tool, etc.) to find:

• The component or system affected (e.g., EGR valve, DOC temp sensor)

• Severity of the fault (e.g., data out of range, short to ground)

• Conditions under which the fault occurred (e.g., during regen, startup)

Why this matters: Misinterpreting a code can lead to replacing the wrong part. Always confirm what the code means before jumping into repairs.

---

Step 3: Fix the Root Cause & Clear the Code

Once you understand the fault, inspect the suspected part and related wiring. Don’t just clear the code—solve the actual problem:

• Repair/replace faulty sensors or wiring

• Perform a forced regen if required

• Recheck after a test drive or parked regen

After repairs:

• Clear the code using your diagnostic software

• Monitor live data to confirm everything’s functioning correctly

Advanced tip: Run a data log during a regen cycle to verify temp changes and sensor accuracy across the aftertreatment system.

---

Tools You’ll Need

• Diesel laptop with software (Diesel Tech, Universal Diag)

---

Final Thoughts

Diagnosing diesel fault codes doesn’t have to be complicated. With the right tools and a step-by-step process, you can quickly pinpoint the issue, make repairs, and clear the code confidently—without going to the dealer.
